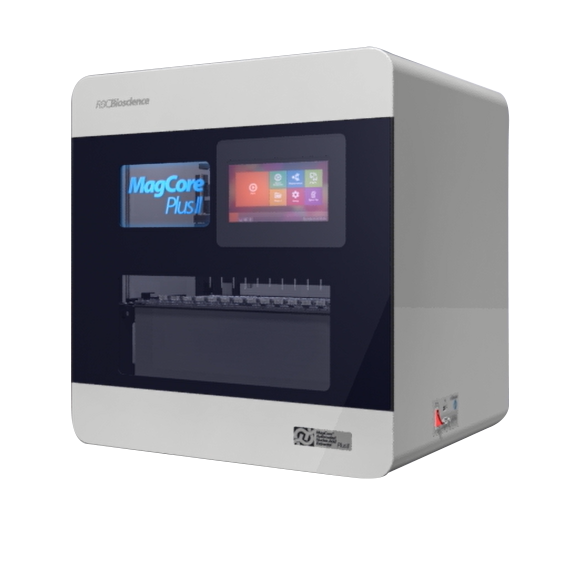

MagCore® Plus II Automated Nucleic Acid Extractor

Plus II

Full traceability and mobile monitoring on your smartphone

MagCore® Plus II is the newest robotic bench-top workstation for a fast and high-yield nucleic acid purification from virtually all molecular diagnostic, biological, clinical and forensic sample types. With small footprint, light weight, user friendly interface, and a broad range of entirely built-in programs with free upgrades, 1-16 samples can be isolated simultaneously at your fingertip. The instrument simplifies your daily routine providing full traceability of kits and samples, through real-time mobile monitoring and a complete report that can be downloaded on a computer at the end of each run.

分類: 設備 Instruments, 全自動核酸提取儀, MagCore®全自動核酸提取儀

商品介紹

試劑條架經特殊設計，安裝更加方便。
緊急情況時儀器自動停止運行，並啟動視覺和音訊警報。

	Worldwide Patented Magnetic Beads Cellulose-coated magnetic beads, coupled with our patented binding and separation technology, guarantee high quality extracts
	Ideal for DNA/RNA Extraction Built-in protocols are created for extracting nucleic acids from a wide range of samples, including whole blood, plasma (circulating free nucleic acid), tissue, bacteria, virus, plant and forensic.
	Throughput up to 16 samples per run From cartridge piercing to final eluate, all steps are performed by the instrument, that allows running 1 to 16 samples at one time, for a time-saving and flexible performance.
	Full traceability of the samples and kits A report in .csv format is generated at the end of each run and contains all relevant data: user’s name, sample and kit barcode, protocol number, sample and elution volume, start and end time. The file, opened on a computer, can be subsequently processed by a LIMS.
	Real-Time Mobile Monitoring During the run, the instrument HMI can be accessed via Wi-Fi from your smartphone/tablet through our App, to see real-time information about the run processing status, remaining time and errors. Android and iOS compatible.
	UV Decontamination The equipped UV lamp minimizes the risk of cross-contamination and ensures user and product safety.
	Built-in Programs (Upgradeable via USB ports, Plug&Play) MagCore® Plus II features built-in protocols for all the extraction kits we offer and is equipped with a USB port for free protocol and software upgrades.
	Barcode Scanner For sample and kit tracking and monitoring and an easier organization of the test results.

貨號：MCA1605

儲存和穩定性：在室溫下儲存

包裝：1個/套

處理能力：最大每批16個樣品

移液單元：X和Y軸移動，用於樣品傳輸和分配。
電氣控制：內置PLC模塊，HMI和驅動器主板。
紫外線：功率8W，壽命11,000小時。
加熱塊：RT〜90℃。
顯示屏： 7英寸彩色觸摸屏。
附件： T型架，墨盒架，條形碼掃描儀，垃圾箱
條形碼掃描器。

電源：電壓：AC 100V〜240V ; 頻率：50 / 60Hz

尺寸： W523 x D602 x H605（mm）/ W21 x D23.7 x H23.8（英寸）

淨重： 70kg / 154.35lbs

運行參數

處理能力：每批可平行處理1-16個樣品

處理時間：30-90分鐘（取決於樣品類型和方法）

處理體積：200µl/400µl/1200µl

洗脫體積：60µl/100µl/150µl/200µl

核酸純度：DNA：OD₂₆₀/OD₂₈₀=1.8±0.1；RNA：OD₂₆₀/OD₂₈₀=2.0±0.2

操作環境

運輸，貯存包裝時允許的溫度： 15°C〜35°C

操作期間允許的溫度：18°C〜30°C

污染度：2級
